CE certificate full-automatic napkin tissue paper packing machinery

FOB Reference Price:Get Latest Price
US $35,000-45,000 / Set | 1 Set/Sets Full-automatic napkin paper packing machine (Min. Order)
Supply Ability:
100 Set/Sets per Year Full-automatic napkin paper packing machine
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Paper Napkin Machine
Processing Type:
Packing machine
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Xinyun
Model Number:
XY-BT-298
Voltage:
380V 50HZ
Power(W):
7.26KW
Dimension(L*W*H):
100-230*100-150*40-100
Weight:
3.8T
Certification:
CE
Warranty:
2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Motor consumption:
3.66KW
High speed:
45-75(bags / min)
Heating consumption:
3.6KW
Packing film:
CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides
Best selling:
Low price and easy operation
Machine for:
Napkin tissue paper machine
Machine design:
Customize service
Packaging & Delivery
Packaging Details
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Case, ensure that the goods will safely arrive at the erection or construction site without any damage.
Delivery Time
Shipped in 60 days after payment

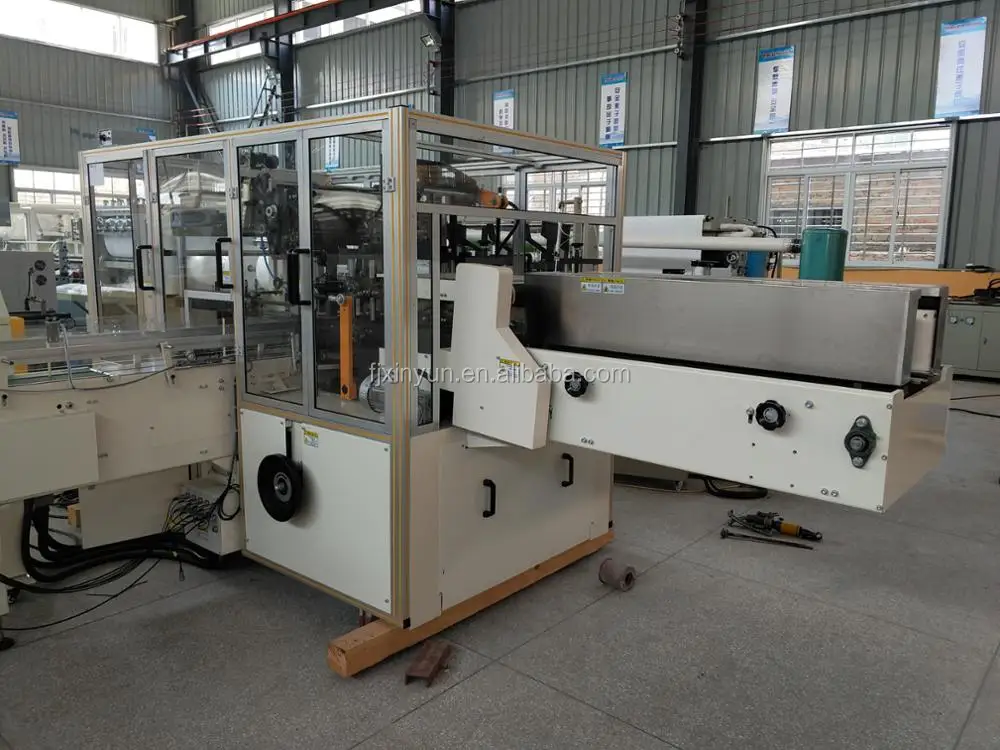

CE certificate full-automatic napkin tissue  paper packing machinery  XY-BT-298

Product Description

Main performance and structure features

1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion , touching screen and PLC, clear display and easy maintenance .
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.

Model & Main technical parameters:

ModelXY-298AXY-298BXY-298C
Outline Dimension (mm)3560*5885*19253560*5885*19253560*5885*2050
Speed (bags / min)35-5045-7535-50
 Packing size(mm)

After folding size

100-230*100-150*40-100   100-230*100-150*40-10    100-230*100-200*40-100
Machine's Weight (KG)300038003800
Motor Consumption (KW)3.663.663.66
Heating Consumption (KW)3.63.63.6
Power380V 50Hz380V 50Hz380V 50Hz
Power Consumption (KW)7.267.267.26
Packing filmCPP,PE,OPP/CPP,PT/PE and other film sealed on both sides



Company Information

 Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.

If you need more information about these machine,please feel free to contact me!

Our Services

1.One-year maintenance service. Any damage spare part can be exchanged from our company directly (excluding the easy damaged goods). After one year, we will continue to assist you both on technical problem and the quality level for long-term.

2.The easy damaged goods will be along with the machine.
