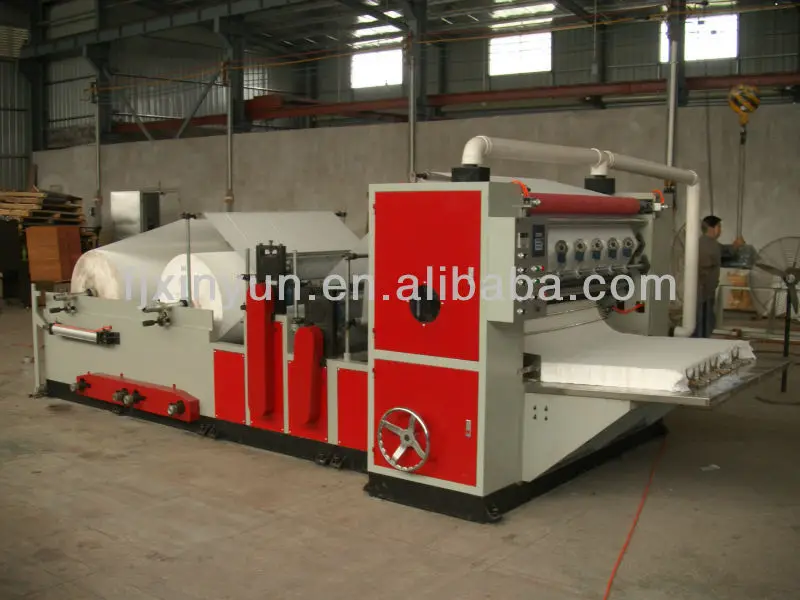

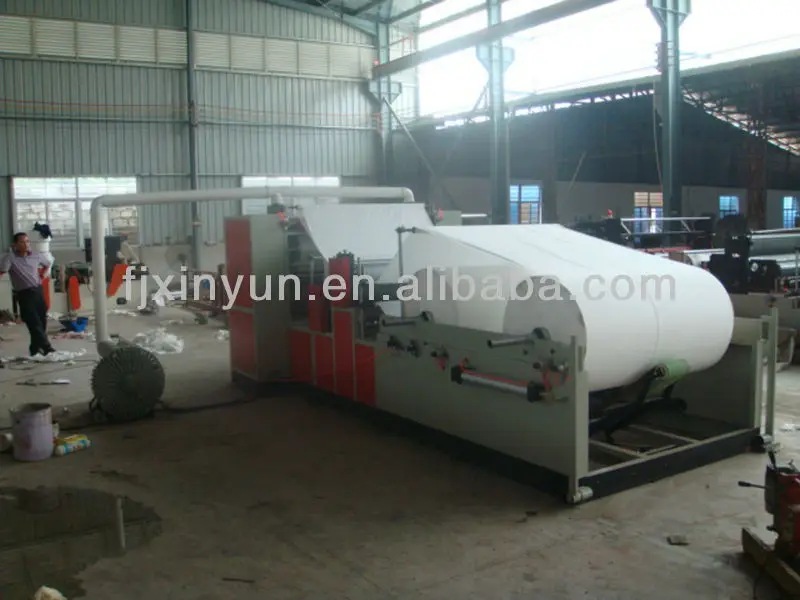

Automatic 6 lines facial tissue paper folding machine

6 lines facial tissue paper folding machine

XY-GU-20A

Descriptions:
This model is designed to produce "link type" box-drawing facial tissue, that's mean, each sheet link together, draw the top tissue, the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers' selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed.

We can make the machine with 1- 8 output lines.
This machine can equip with single color printing or double color printing unit.

Function and Features:

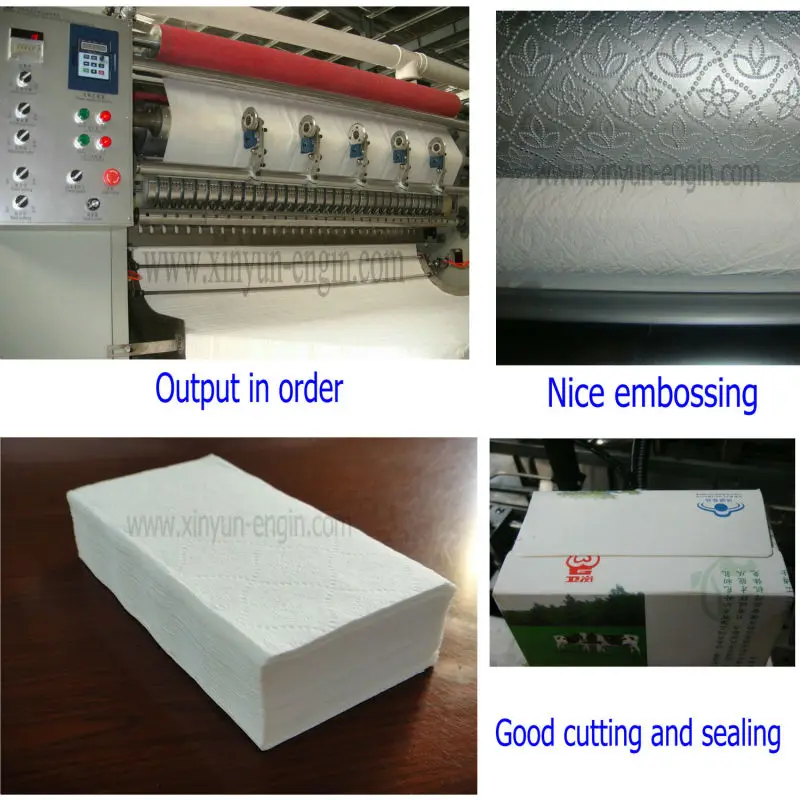

1. Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. Electricity control, easy to operate.
5. This equipment can have embossing unit.
6. Wide range of production width for selection.

Technical data:
1. Production speed: 1000 Sheets/line/minute
2. Production open size(mm)200(L)X200 (W)
3. Production folded size(mm)100(L)X200 (W)

4. Power: 7.5KW (380V 50Hz)
5. Overall size(m): 5.8 X2.2X2(LxWxH)
6. Weight: About 3.5T

Specification of raw material:
1. Width of raw paper: 200-1600mm (1-8 lines)
2. Diameter of raw paper: 700mm-1200mm
3. Thickness of raw paper: 14G/m² -18G/M²
4. Diameter of paper core: 76.2mm

Video Link: https://www.youtube.com/watch?v=Yx_jo99tJNA
